Compact ejectors 小型噴射器
FIPA 小型噴射器佔用空間小，並且由於具有壓力調節/節省空氣功能，因此非常經濟。 無論工件的孔隙率如何，EMM，EKP和 EKPP系列噴射器都可將操作成本降低多達50％。 EMA系列中的壓力調節/節能和電子自動節氣功能相結合，在使用無孔工件時可節省高達97％的運行成本。
憑藉電子吹掃功能和真空控制，FIPA 小型噴射器可實現快速循環時間 – 非常適用於鈑金成型，汽車工業和木材加工中的包裝技術和應用。
所有 FIPA 小型噴射器都配有整合的開放式消音器，可大大降低噪音水平。
EMM和 EMA系列小型噴射器的塊狀結構特徵可實現節省空間的成批性組裝。
原廠連結
技術數據
Ejectors with air saving function EMM
具有空氣節能功能的噴射器 EMM
Energy saving function by integrated pressure control
SAVES UP TO 50 % OF ENERGY
Ejector EMM integrated into gripper housing for
Delta robots with Varioflex® bellows vacuum cups and workpiece
= Vacuum connection
= Compressed air connection
= Exhaust outlet
- 處理緻密多孔的工件
- 在4 – 8 bar（58 – 116 psi）的供應壓力範圍內，噴射器工作在 3.5 bar（50.76 psi），具有相同的高性能
- 節能增加以及供應壓力和操作壓力之間的差異
- 電子真空和吹掃控制，縮短循環時間
- 使用固定螺絲手動調節吹出流量
- 非常緊湊的設計，整合開放式消音器
- 防塵設計，無需額外過濾器
Technical data
| Item no. | EMM.60×10 | EMM.60×12 | EMM.60×14 | EMM.90×10 | EMM.90×12 | EMM.90×14 |
|---|---|---|---|---|---|---|
| Nozzle diameter [mm] | 1 | 1.2 | 1.4 | 1 | 1.2 | 1.4 |
| Feed pressure [bar (psi)] | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) |
| Internal working pressure [bar (psi)] | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) |
| Final vacuum [%] | 60 | 60 | 60 | 90 | 90 | 90 |
| Suction power [scfm] | 1.3 | 2.5 | 3.2 | 1 | 1.6 | 2.5 |
| Air consumption [scfm] | 1.5 | 2.3 | 3.2 | 1.5 | 2.3 | 3.2 |
| Protection class | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating principle | NC | NC | NC | NC | NC | NC |
| Control voltage | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % |
| Current consumption for vacuum and blow-off feature [mA] | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) |
| Noise level [dB(A)] | 68 | 68 | 68 | 68 | 68 | 68 |
| Operating temperature [°C (°F)] | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) |
| Weight [oz] | 4.23 | 4.23 | 4.23 | 4.23 | 4.23 | 4.23 |
| Data Sheet |  | | | | | |
Ejectors with air saving function EMA
具有節氣功能的噴射器 EMA
Double energy efficient by integrated pressure control and electronic air saving function
SAVES UP TO 90 % OF ENERGY
- 電子節氣功能可通過密集的工件將操作成本降低多達90％
- 恆定3.5 bar（50.76 psi）的壓力調節節能功能可將多孔工件的運行成本降低多達50％
– 節能增加以及供應壓力和操作壓力之間的差異 - 電子真空和吹掃控制，縮短循環時間
- 使用固定螺絲手動調節吹出流量
- 非常小型的設計，整合開放式消音器
- 防塵設計，無需額外過濾器
- 根據客戶需求提供 NO 版本
- 可根據要求提供更小的噴嘴直徑
Technical data
| Item no. | EMA.90×14 |
|---|---|
| Nozzle diameter [mm] | 1.4 |
| Feed pressure [bar (psi)] | 4 – 8 (58 – 116) |
| Internal working pressure [bar (psi)] | 3.5 (50.8) |
| Final vacuum [%] | 90 |
| Suction power [scfm] | 2.5 |
| Air consumption [scfm] | 3.2 |
| Protection class | IP65 |
| Operating principle | NC |
| Control voltage | 24 VDC (adjusted) ± 10 % |
| Current consumption for vacuum and blow-off feature [mA] | 30 (0.7 W) |
| Noise level [dB(A)] | 68 |
| Operating temperature [°C (°F)] | 10 – 60 (50 – 140) |
| Weight [oz] | 4.59 |
| Data Sheet | |
Ejectors with air saving function EKP and EKPP
具有節氣功能的噴射器 EKP 和 EKPP
Energy saving function by integrated pressure control
SAVES UP TO 50 % OF ENERGY
Check valve with wire mesh
to keep out impurities

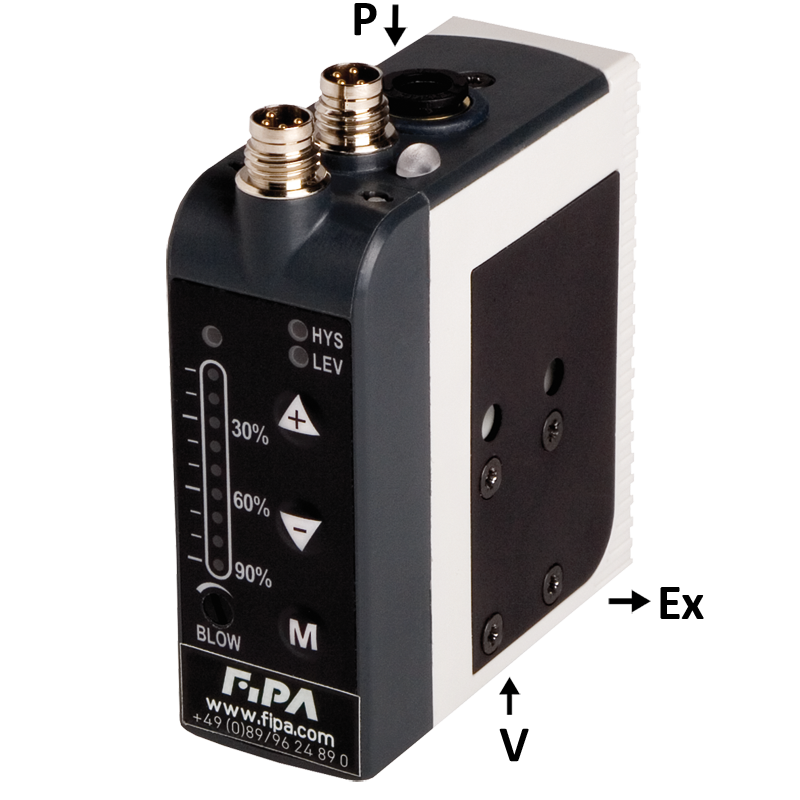

- = Vacuum connection
- = Compressed air connection
- = Exhaust outlet
- 處理緻密多孔的工件
- 在 4 – 8 bar（58 – 116 psi）的供應壓力範圍內，噴射器工作在 3.5 bar（50.76 psi），具有相同的高性能
- 電子式真空和吹掃控制，縮短循環時間
- 使用固定螺絲手動調節吹出流量
- 低壓噪音排放，從 4 bar（58 psi）開始，出口壓力與入口壓力無關
- 打開消音器可進一步降低噪音水平，完全免維護
Technical data
| Item no. | EKP.60×12 | EKP.60×15 | EKP.60×20 | EKP.60×25 | EKP.60×30 | EKP.90×12 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nozzle diameter [mm] | 1.2 | 1.5 | 2 | 2.5 | 3 | 1.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Feed pressure [bar (psi)] | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | 4 – 8 (58 – 116) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internal working pressure [bar (psi)] | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | 3.5 (50.8) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Final vacuum [%] | 60 | 60 | 60 | 60 | 60 | 90 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Suction power [scfm] | 2.5 | 3.9 | 6.6 | 9.6 | 13.5 | 1.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Air consumption [scfm] | 2.3 | 3.4 | 6.3 | 7 | 13.5 | 2.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection class | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating principle | NC | NC | NC | NC | NC | NC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Control voltage | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | 24 VDC (adjusted) ± 10 % | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Current consumption for vacuum and blow-off feature [mA] | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | 30 (0.7 W) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature [°C (°F)] | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | 10 – 60 (50 – 140) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight [oz] | 8.82 | 8.82 | 8.82 | 8.82 | 8.82 | 8.82 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data Sheet | | | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
