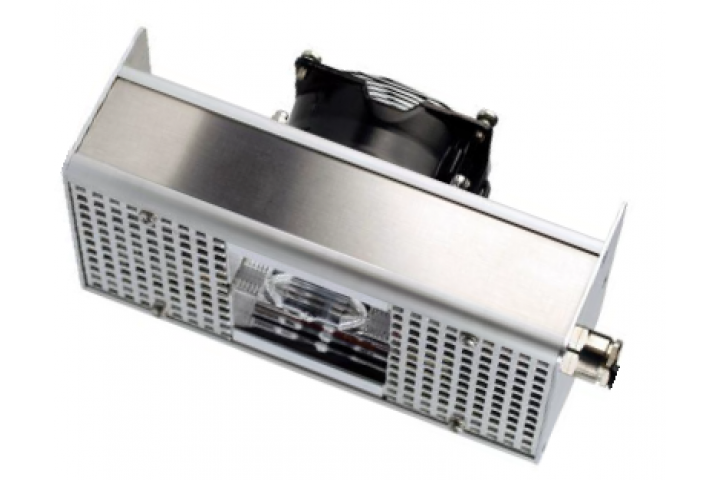

迷你反射器 帶固定反射鏡的反射鏡單元,用於紫外線中壓燈 迷你型
迷你反射器單元是專為小面積固化而設計的。 它具有簡單而強大的構建。 它設計用於長達 8厘米的短弧長。 典型的燈功率在 200W 至 800W之間。
它包含高度拋光的陽極氧化鋁反射器。 微型反射鏡單元中集成了一個點火器。 該單元包括用於冷卻 uv燈的軸流風扇。 它與常規鎮流器或電子電源(EPS)兼容。 請在此處查看有關我們的 uv電子電源和常規鎮流器的信息。
微型反射器單元的合適應用包括粘合劑固化和小規模應用,例如噴墨印刷。 該裝置與汞(Hg),鐵(Fe)和鎵(Ga)紫外線燈兼容。
屬性
Mini型反射鏡單元設計用於固化小面積區域。這是一種簡單而堅固的結構。它設計用於短弧長(大約2-8厘米/0.8″-3,1“)。它可以與不同的 uv燈一起使用,典型的燈功率在 200W-800W之間。
固定的反射鏡是高度拋光的陽極氧化鋁反射鏡板。點火器中集成了一個點火器(取決於鎮流器)。軸流風扇安裝在頂部,用於 uv燈冷卻。
如果需要通過功率步進或無級調節功率,則可以通過 PWM(未提供)控制氣流。
鎮流器未集成。它是單獨提供的,可以是常規鎮流器或電子電源(EPS)。
應用
該反射器單元的典型用途是粘合劑固化應用和小規模應用,例如噴墨印刷。通過選擇其他 uv燈(可選),可以實現其他光譜。微型反射鏡單元可以安裝在輻射的任何位置和方向。

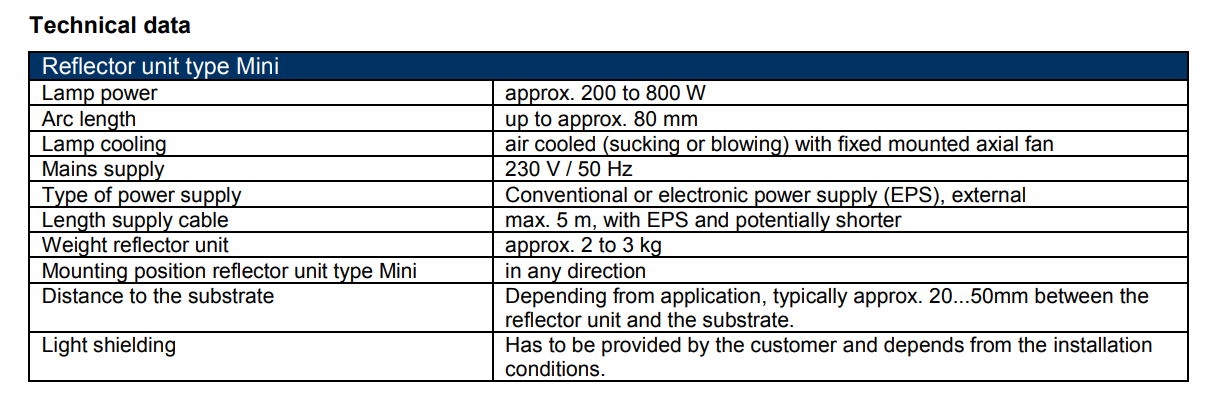

Reflector unit type Mini – Technical Data | |
---|---|
Lamp power | approx. 200 to 800 W |
Arc length | up to approx. 80 mm |
Lamp cooling | air cooled (sucking or blowing) with fixed mounted axial fan |
Mains supply | 230 V / 50 Hz |
Type of power supply | Conventional or electronic power supply (EPS), external |
Length supply cable | max. 5 m, with EPS and potentially shorter |
Weight reflector unit | approx. 2 to 3 kg |
Mounting position reflector unit Mini | in any direction |
Distance to the substrate | Depending from application, typically approx. 20…50mm between the reflector unit and the substrate. |
Light shielding | Has to be provided by the customer and depends from the installation conditions |
