Oval vacuum suction plates

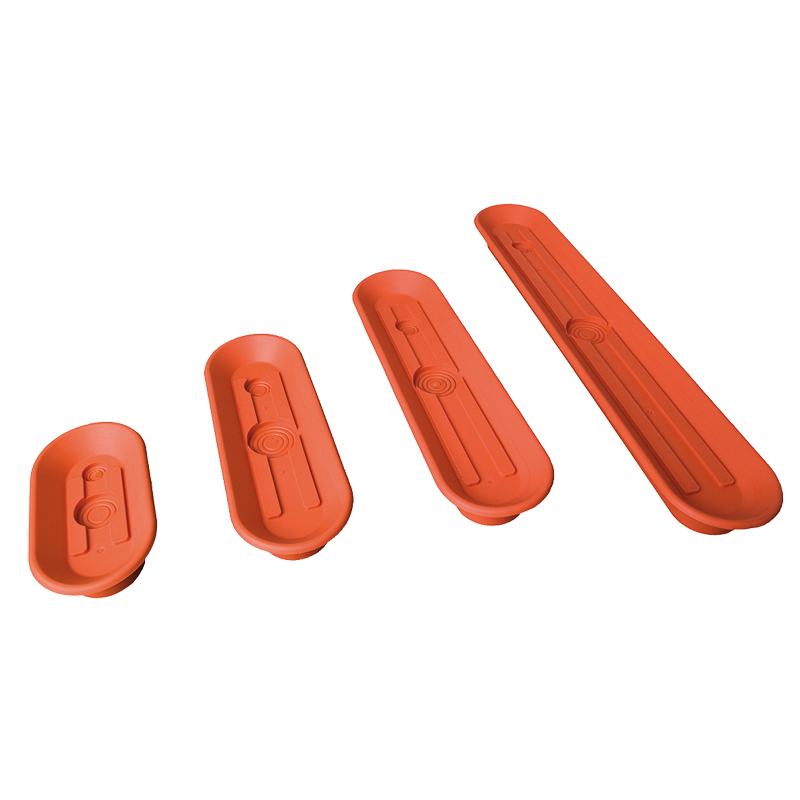

木材和玻璃行業需要由彈性低標記材料製成的真空杯。 FIPA SOPL-A系列橢圓形吸盤專為處理由玻璃和木材製成的細長產品而設計。 硫化鋁支撐板保證了所需的緊固和高彎曲強度。 橡膠支架可防止工件變形並提高橫向穩定性。
由耐磨天然橡膠(NR)製成的橢圓形真空杯盤設計用於搬運木製品。 由低標號丁腈橡膠(NBR)製成的橢圓形吸盤適用於處理玻璃。
我們的技術銷售部門隨時準備為您提供特殊要求。
原廠連結
技術數據
Technical data
Item no. | Material / Color | [mm] | Weight [oz] | Model / Lip dimensions | Support surfaces | Data Sheet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SOPL-S: NBR material, grey, with steel carrier plate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.200×40.010._* | NBR (gr) | 9 | 4.94 | SOPL-S-200×40 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.110×40.009._* | NBR (gr) | 9 | 4.3 | SOPL-S-110×40 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.125×55.012._* | NBR (gr) | 9 | 11.29 | SOPL-S-125×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.150×55.013._* | NBR (gr) | 7 | 8.99 | SOPL-S-150×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.200×55.014._* | NBR (gr) | 7 | 18.98 | SOPL-S-200×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.250×55.016._* | NBR (gr) | 8 | 27.16 | SOPL-S-250×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.300×55.019._* | NBR (gr) | 8 | 31.82 | SOPL-S-300×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.370×70.022._* | NBR (gr) | 10 | 66.84 | SOPL-S-370×70 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.200×100.015._* | NBR (gr) | 8 | 20.99 | SOPL-S-200×100 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.280×100.017._* | NBR (gr) | 10 | 66.32 | SOPL-S-280×100 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.450×130.025._* | NBR (gr) | 6 | 93.83 | SOPL-S-450×130 | crosswise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.430×180.024._* | NBR (gr) | 6 | 131.22 | SOPL-S-430×180 | selective | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.580×180.029._* | NBR (gr) | 10 | 123.46 | SOPL-S-580×180 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SOPL-A: NR material, orange, with aluminum carrier plate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.100×55.020._* | NR (or) | 8 | 2.29 | SOPL-A-100×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.150×55.083._* | NR (or) | 8 | 4.02 | SOPL-A-150×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.200×55.020._* | NR (or) | 8 | 5.61 | SOPL-A-200×55 | lengthwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9.300×55.046._* | NR (or) | 8 | 10.58 | SOPL-A-300×55 | lengthwise |
